The TOCG-3041 total organic carbon analyzer is an independently developed and manufactured product of Shanghai Boqu Instrument Co., Ltd. It is an analytical instrument designed for determining the total organic carbon (TOC) content in water samples. The device is capable of detecting TOC concentrations ranging from 0.1 µg/L to 1500.0 µg/L, offering high sensitivity, accuracy, and superior stability. This total organic carbon analyzer is widely applicable to various customer requirements. Its software interface is user-friendly, enabling efficient sample analysis, calibration, and testing procedures.
Features：
1. Exhibits high detection accuracy and a low detection limit.
2. Does not require carrier gas or additional reagents, offering ease of maintenance and low operational costs.
3. Features a touchscreen-based human-machine interface with an intuitive design, ensuring user-friendly and convenient operation.
4. Provides extensive data storage capacity, enabling real-time access to historical curves and detailed data records.
5. Displays the remaining lifespan of the ultraviolet lamp, facilitating timely replacement and maintenance.
6. Supports flexible testing configurations, available in both online and offline operation modes.
TECHNICAL PARAMETERS
| Model | TOCG-3041 |
| Measuring Principle | Direct conductivity method (UV photooxidation) |
| Output | 4-20mA |
| Power Supply | 100-240 VAC /60W |
| Measuring Range | TOC:0.1-1500ug/L,Conductivity:0.055-6.000uS/cm |
| Sample Temperature | 0-100℃ |
| Accuracy | ±5% |
| Repeatability error | ≤3% |
| Zero Drift | ±2%/D |
| Range Drift | ±2%/D |
| Working Condition | Temp:0-60°C |
| Dimension | 450*520*250mm |
Applications:

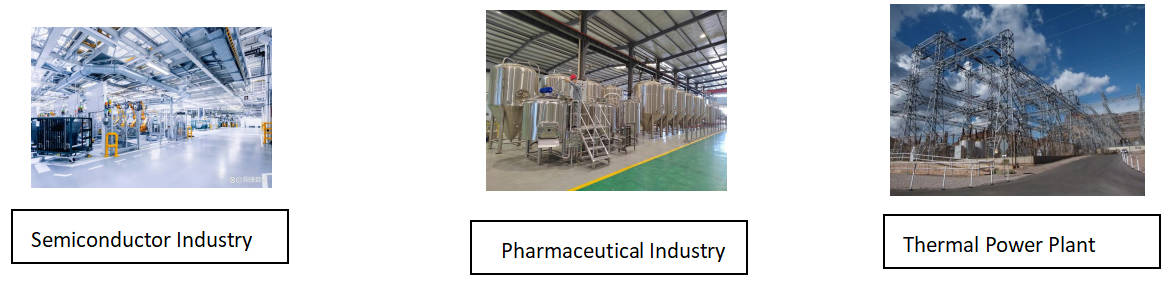

It can be widely applied to the injection water and purified water in the pharmaceutical industry, the ultra-pure water preparation system in the semiconductor industry, the wafer process, and the deionized water in power plants
