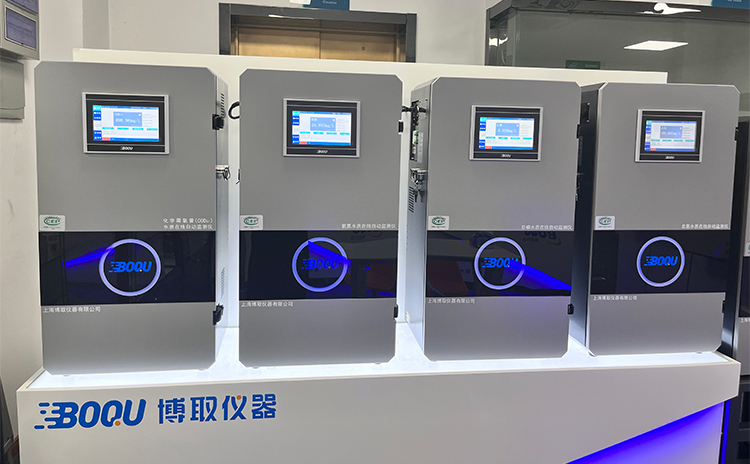

Chemical Oxygen Demand (CODcr) Water Quality Online Automatic Analyzer
COD&Ammonia&TP&TN&Heavy Metal/Chlorophyll/Blue-green Algae

Chemical Oxygen Demand (CODcr) Water Quality Online Automatic Analyzer

★ Model No: AME-3000

★ Measuring Range:0-100mg/L、0-200mg/L and 0-1000mg/L

★ Communication Protocol:RS232、RS485、4-20mA

★ Power Supply: 220V±10%

★ Product Size:430*300*800mm

    On-line COD Analyzer

    Detection Principle

    Add a known amount of potassium dichromate solution to the water sample, and use silver salt as a catalyst and mercury sulfate as a masking agent in a strong acid medium. After high-temperature and high-pressure digestion reaction, detect the absorbance of the product at a specific wavelength. According to Lambert Beer's law, there is a linear correlation between the chemical oxygen demand content in water and the absorbance, and then determine the concentration of chemical oxygen demand in water.Note: There are difficult to oxidize substances such as aromatic hydrocarbons and pyridine in the water sample, and the digestion time can be appropriately extended.

    6a2f9c1d8b17b12897

    TECHNICAL PARAMETERS

    Model

    AME-3000

    Parameter

    COD (Chemical oxygen demand)

    Measuring Range

    0-100mg/L、0-200mg/L and 0-1000mg/L, Three-range automatic switching, expandable

    Test Period

    ≤45min

    Indication Error

    ±8% or ±4mg/L(Take the smaller one)

    Limit of quantitation

    ≤15mg/L(Indication error: ±30%)

    Repeatability

    ≤3%

    Low level drift in 24h(30mg/L)

    ±4mg/L

    High level drift in 24h(160mg/L)

    ≤5%F.S.

    Indication error

    ±8%or±4mg/L(Take the small one)

    Memory effect

    ±5mg/L

    Interferrnce of voltage

    ±5mg/L

    Interferrnce of chloridion(2000mg/L)

    ±10%

    Comparison of actual water samples

    CODcr<50mg/L:≤5mg/L

    CODcr≥50mg/L:±10%

    Data availability

    ≥90%

    Conformity

    ≥90%

    Minimum maintenance cycle

    >168h

    Power Supply

    220V±10%

    Product size

    430*300*800mm

    Communication

    Real-time data can be printed on paper.RS232,RS485 digital interface,4-20mA analog output,4-20mA analog input,and multiple switches are available for selection.

    Characteristics

    1. The analyzer is miniaturization in size, which is convenient for daily maintenance;

    2. High-precision photoelectric metering and detection technology are used to adapt to various complex water bodies;

    3.Three ranges (0-100mg/L), (0-200mg/L) and (0-1000mg/L) satisfy most of the water quality monitoring requirements. The range can also be extended according to the actual situation;

    4. Fixed-point, periodic, maintenance and other measurement modes satisfy the requirements of measurement frequency;

    5.Reduces the operation and maintenance costs by low consumption of reagents;

    6. 4-20mA,RS232/RS485andothercommunicationmethodssatisfy the communication requirements;

    Applications

    This analyzer is mainly used for real-time monitoring of chemical oxygen

    demand (CODc r) co
