What is the Best Industrial Explosion-proof pH Meter?

Key Features & Advantages‌

1.‌Intrinsically Safe & Explosion-Proof Design‌

• Compliant with GB3836.1-2010 and GB3836.4-2010 standards, rated ‌Ex ia IIC T4Ga‌.
• Suitable for hazardous atmospheres with ambient temperatures from ‌-20 °C to 55 °C‌.

2.‌High Accuracy & Wide Measurement Range‌

• ‌pH:‌ 0.00–14.00 (±0.05 pH accuracy)
• ‌ORP:‌ -2000 mV to 2000 mV (±1 mV accuracy)
• ‌Temperature:‌ Pt1000: 0.0 °C–130.0 °C / NTC10k: -30.0 °C–100.0 °C (±0.5 °C accuracy)

3.‌Two-Wire 4–20 mA Output & Low Power Consumption‌

• Single 4–20 mA current-loop output for seamless integration with PLCs, DCS, or SCADA systems.
• Ultra-low power consumption (0.66 W) supports long-term operation even in remote or power-sensitive installations.

4.‌Rugged Construction & Easy Deployment‌

• Die-cast aluminum housing with ‌IP65‌ protection against dust and water ingress.

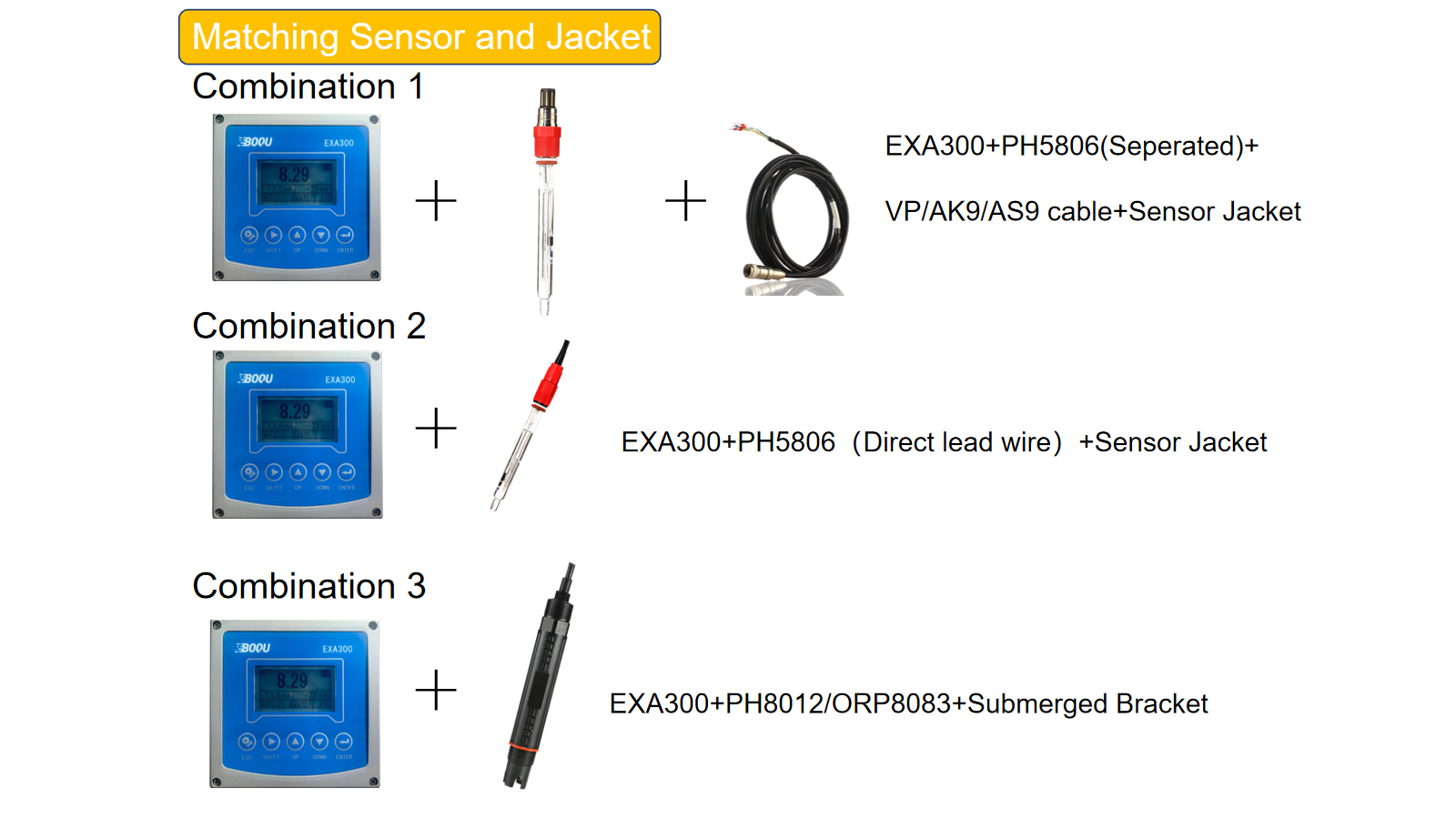

• Compact dimensions (144 mm × 144 mm × 147 mm) and versatile mounting options: embedded, pipe-mount, side-wall, top-flange, immersion, and flow-through installations.

5.‌User-Friendly Operation & Smart Calibration‌

• Clear LCD display with five-button navigation for quick setup, calibration, and diagnostics.
• Multiple calibration modes: manual, two-point auto-cal, three-point auto-cal, and configurable buffer groups (JJG/NIST standards).
• Real-time electrode-status indication (excellent/normal/poor) and maintenance-mode override for stable output during sensor servicing.
