Multi-parameter Online Water Quality Analysis

Short Description:

★ Model No: MPG-6099Plus

★Simultaneous Connection: Six Sensors

★Built-in Programs: 11 standard parameters

★ Data storage: Yes

★Display screen: 7 inch color touch screen

★Communication: RS485

★Power supply: 90V–260V AC 50/60Hz (24V alternative)

Send email to us

Product Detail

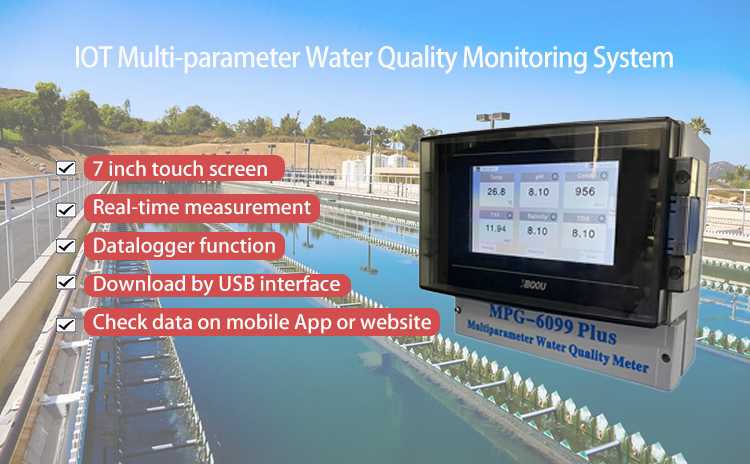

Wall-mounted Water Quality Multi-parameter Analyzer

The multi-parameter water quality online analysis system integrates multiple water quality parameters into a single unit, allowing centralized monitoring and management via a touchscreen panel. This system combines online water quality analysis, remote data transmission, databases, analysis software, and calibration functions, providing significant convenience for modern water quality data collection and analysis.

Features 1. The electrodes adopt digital Internet of Things sensors for automatic recognition. 2. Users can freely choose the parameters to be measured and pair sensors as desired. 3. It supports simultaneous connection to six sensors. 4. The digital sensors have strong anti-interference capabilities in signal cables, allowing for a significant extension of signal transmission distance. 5. Touchscreen: Real-time display of monitoring parameters and operation through touch control. 6. Equipped with data storage and historical data viewing functions, and data can be exported. 7. Built-in 11 standard parameters, allowing for free selection of sensors and configuration programs based on needs. 8. Customization is available in addition to the built-in standard parameters.

Applications:Sewage treatment plants, municipal sewage, rainwater pipe network, industrial water, aquaculture, etc.

Model	MPG-6099Plus
Simultaneous Connection:	Six Sensors
Built-in Programs:	11 standard parameters
Parameters	Temperature/pH/Conductivity/ORP/Turbidity/Dissolved Oxygen/Suspended Solids/Residual Chlorine/COD/Ammonium Ion/Nitrate Ion(Note: Actual parameters depend on specific orders)
Data storage	Yes
Display screen	7 inch color touch screen
Communication	RS485
Power supply	90V–260V AC 50/60Hz (24V alternative)
Working Temperature	0-50℃；
Storage environment	Relative humidity: ≤85% RH (no condensation)
Product size	280220160mm
Temperature	Range：0-60℃，Resolution: 0.1℃，Accuracy：±0.5℃
pH	Range：0-14pH，Resolution：0.01pH， Accuracy：±0.10pH
Conductivity	Range：0-200mS/cm，Resolution：0.01uS/cm（mS/cm)，Accuracy：±1%F.S.
ORP	Range：-2000mV-2000mV，Resolution：0.01mv，Accuracy：±20mv
Turbidity	Range：0-4000NTU，Resolution：0.01NTU，Accuracy：±2%，or ±0.1NTU (Take the larger one)
Dissolved Oxygen	Range：0-25mg/L，Resolution：0.01mg/L，Accuracy：±0.1mg/L or ±1%（0-10mg/L）/ ±0.3mg/L or ±3%（10-25mg/L)
Suspended Solids	Range：0-120000mg/L，Resolution：0.01mg/L，Accuracy：±5%
Residual Chlorine	Range：0-5mg/L，Resolution：0.01mg/L ，Accuracy：±3%F.S.
COD	Range：0-2000mg/L，Resolution：0.01mg/L，Accuracy：±3%F.S.
Ammonium Ion	Range：0-1000mg/L，Resolution：0.01mg/L，Accuracy：±0.1mg/L
Nitrate Ion	Range：0-1000mg/L，Resolution：0.01mg/L，Accuracy：±0.1mg/L
