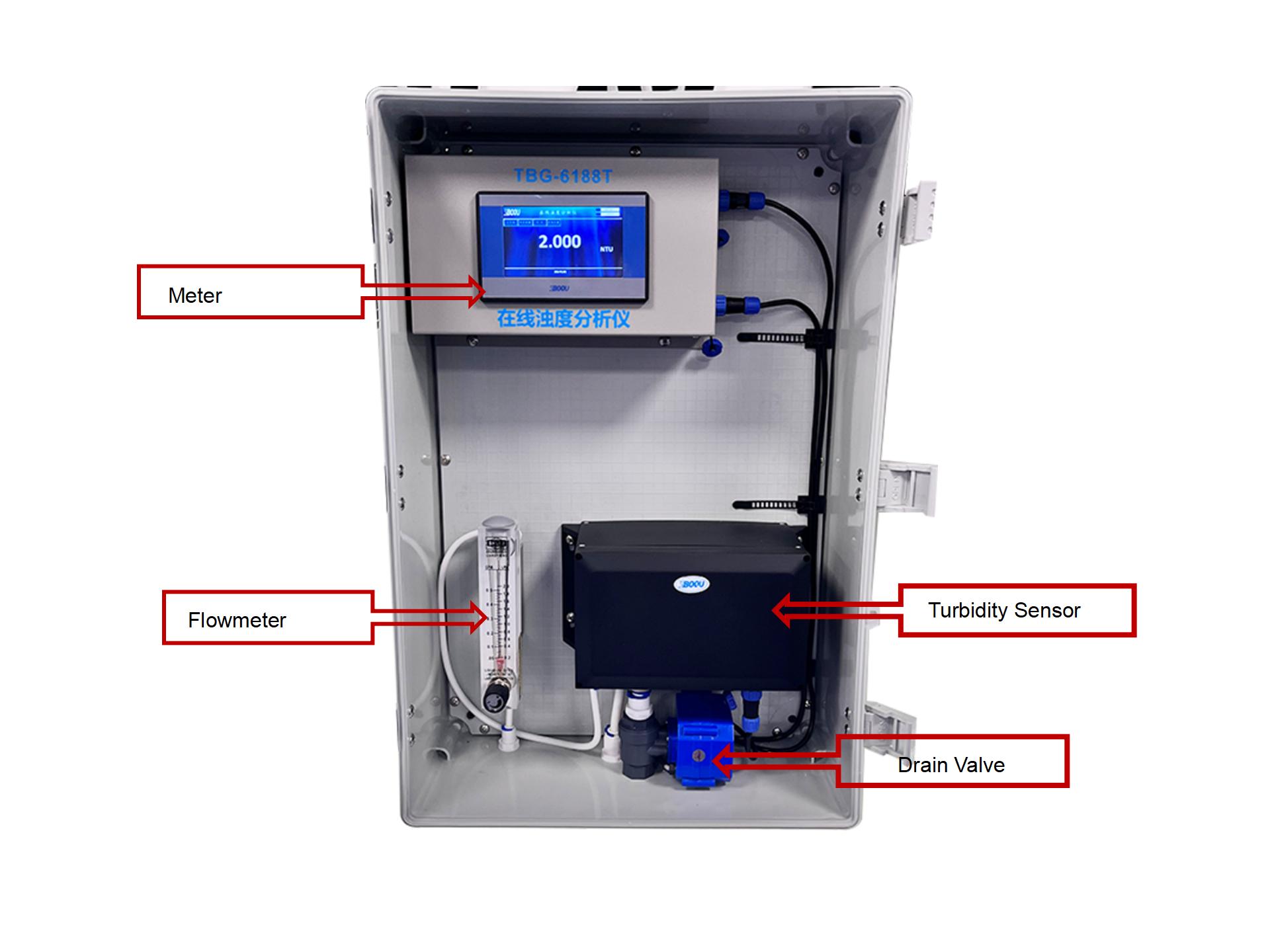

The TBG-6188T turbidity online analyzer integrates a digital turbidity sensor and waterway system into a single unit. The system allows for data viewing and management, as well as calibration and other operational functions. It combines online turbidity analysis of water quality with database storage and calibration capabilities. Optional remote data transmission functionality enhances the efficiency of data collection and analysis for water turbidity monitoring.
The turbidity sensor is equipped with a built-in defoaming tank, which removes air bubbles from the water sample prior to measurement. This instrument requires only a small volume of water sample and offers high real-time performance. A continuous flow of water passes through the defoaming tank and then enters the measurement chamber, where it remains in constant circulation. During this process, the instrument captures turbidity data and supports digital communication for integration with a central control room or upper-level computer system.
Features:
1. The installation is simple, and the water can be used immediately;
2. Automatic sewage discharge, less maintenance;
3. High-definition large screen, full-featured display;
4. With data storage function;
5. Integrated design, with flow control;
6. Equipped with 90°scattered light principle;
7. Remote data link (optional).
Applications:
Monitoring of water turbidity in swimming pools, drinking water, secondary water supply in pipe networks, etc.
TECHNICAL PARAMETERS
|
Model |
TBG-6188T |
|
Screen |
4-inch color touch screen |
|
Power supply |
100-240V |
|
Power |
< 20W |
|
Relay |
one-way timed blowdown relay |
|
Flow |
≤ 300 mL/min |
|
Measuring range |
0-2NTU,0-5NTU,0-20 NTU |
|
Accuracy |
±2% or ±0.02NTU whichever is greater (0-2NTU range) |
|
Signal output |
RS485 |
|
Inlet/Drain Diameter |
Inlet:6mm (2-point push-in connector); Drain:10mm (3-point push-in connector) |
|
Dimension |
600mm×400mm×230mm（H×W×D） |
|
Data storage |
Store historical data for more than one year |
