What is a "Rainwater Pipe Network Monitoring System"?

The online monitoring system for rainwater outlet pipe networks leverages digital IoT sensing technology and automated measurement methods, with digital sensors as its core. This integrated system combines multi-parameter water quality monitoring, remote signal transmission, and data display and analysis functions. Comprising an automated monitoring station and an IoT-based big data platform, it forms a comprehensive management framework. Its capabilities include water quality measurement, remote communication, data storage, querying, trend analysis, and alarm early warning, enabling full-process monitoring of multiple water quality parameters. This system provides a robust data foundation for online oversight and planning support of rainwater pipe networks.

The system is structured into four layers:

·Perception Layer‌: Composed of advanced intelligent digital IoT sensors, it continuously monitors water quality and hydrology in the rainwater pipe network, outputting digital signals for real-time data collection.

·Network Layer‌: The intelligent monitoring station supports multiple communication modes (e.g., NB-IoT, GPRS, CDMA, Ethernet) to upload data to the monitoring platform for storage and analysis.

·Platform Layer‌: The IoT detection platform centralizes data display and analysis, offering functions such as real-time water quality detection, trend analysis, valve control data query, and early warning alerts.

·Application layer: The data obtained from water quality monitoring in the rainwater pipe network can be utilized in various domains, including emergency command systems, digital urban management, safe city initiatives, government service hotlines, environmental monitoring, and intelligent transportation systems.

‌What Parameters Need to Be Monitored for Rainwater Pipe Network Water Quality?

The core parameters for water quality monitoring in stormwater networks include:

·pH Value‌: Indicates acidity or alkalinity; normal clean rainwater has a pH of ~5.6. Values below this may indicate acid rain, which can corrode pipes and harm ecosystems.

·Conductivity‌: Reflects total ion content; pure rainwater typically has a conductivity of 5–20 μS/cm. Elevated levels may suggest industrial or marine pollution.

·Turbidity‌: Measures water clarity; high turbidity indicates sediment or particle contamination, affecting aquatic transparency.

·Chemical Oxygen Demand (COD)‌: Assesses organic pollutant levels; excessive COD consumes dissolved oxygen, disrupting ecological balance.

·Ammonia Nitrogen‌: Primarily from domestic sewage and agricultural runoff; high levels can cause eutrophication and algal blooms.

·Water Temperature‌: Influences aquatic ecology and microbial activity; a critical baseline parameter.

Additional parameters such as sulfate, nitrate, chloride ions, and suspended solids (SS) may also be monitored based on specific requirements. Tracking these indicators helps identify pollution sources, ensure safe rainwater discharge, and protect urban water environments.

Implementation Plan for Shanghai Boqu Instruments’ Rainwater Pipe Network Monitoring Products

To address rainwater pipe network monitoring needs, Shanghai Boqu Instrument Co., Ltd. offers an integrated multi-parameter system. The solution includes a solar power supply unit, lithium battery, main unit box, and control module, supporting the detection of over ten water quality and hydrological parameters (e.g., COD, ammonia nitrogen, pH, conductivity, dissolved oxygen, turbidity). It also monitors pipeline flow rate, liquid level, pressure, and rainfall, with remote valve control capabilities.

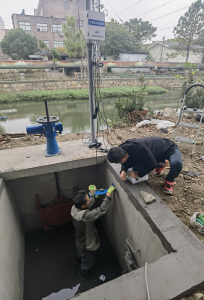

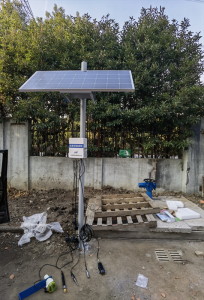

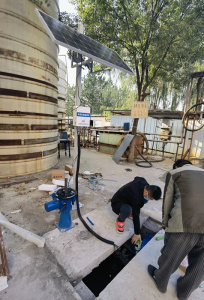

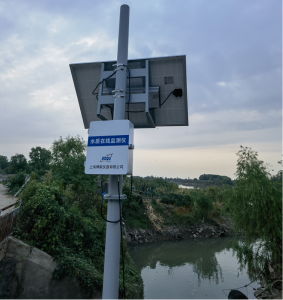

Multi-parameter Water Quality Monitoring Analyzer

Product Features

1.Low power consumption design ensures energy efficiency and sustainable operation.
2. Power supply options include mains electricity or solar-powered lithium batteries, enabling flexible deployment in diverse environments.
3. Monitored parameters include pH, suspended solids, chemical oxygen demand (COD), ammonia nitrogen, conductivity, flow rate, liquid level, and other key water quality indicators.
4. Data output complies with the standard RS485 communication protocol and supports remote transmission via wireless modules such as RTU.
5. The integrated digital sensor is equipped with automatic calibration and self-cleaning functions, operates without reagents, and requires minimal maintenance.

Product Advantages

1. Fully integrated system combining data collection, storage, transmission, and power supply in a single unit.
2. Utilizes advanced digital sensors featuring self-cleaning, reagent-free operation, and low maintenance requirements.
3. Solar-powered lithium battery enables continuous operation for up to 20 consecutive rainy days, with configurable data acquisition intervals ranging from 1 to 999 minutes.
4. IP68-rated waterproof enclosure ensures durability in harsh conditions; supports automatic sensor recognition, plug-and-play functionality, and simplified maintenance.
5. Real-time monitoring and data visualization are available through a dedicated mobile application, while sensor calibration can be performed remotely via PC software.
6. The chassis includes protective features such as a durable cover to enhance equipment safety and longevity.
7. Integrated Internet of Things (IoT) interface supports multiple communication protocols for seamless connectivity and system integration.

Installation Guidelines

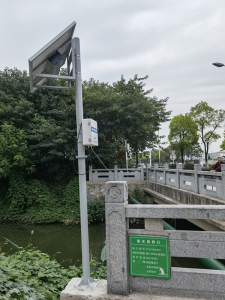

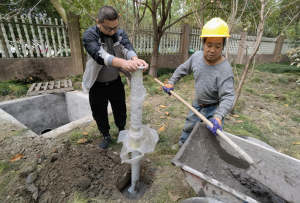

1. Install the device adjacent to the rainwater well; secure the base using expansion bolts or cement fixation, depending on site conditions.
2. Position the solar panel facing true south to maximize photovoltaic energy generation efficiency; installation requires a team of two to three personnel.
3. Ensure that sensors deployed within the rainwater well are installed vertically and positioned at least 10 cm above the well bottom to ensure accurate measurements.
4. Securely mount liquid level and pressure sensors to the well wall or pipe opening using screws to maintain stable positioning and reliable performance.
