Shanghai BOQU Instrument Co., LTD. New Product Release

111

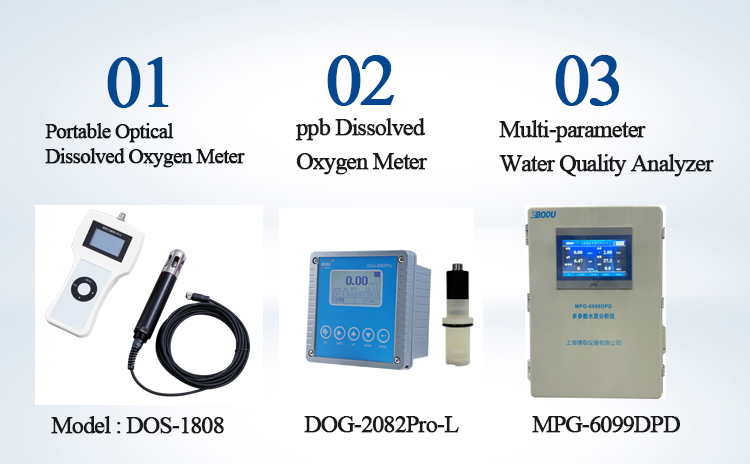

We have released three self-developed water quality analysis instruments. These three instruments were developed by our R&D department based on customer feedback to meet more detailed market demands. Each one has undergone functional upgrades in the corresponding working conditions, making water quality monitoring more accurate, intelligent and simple. Here is a brief introduction to the three instruments:

The newly released portable fluorescence dissolved oxygen meter: It adopts the optical measurement principle of fluorescence quenching effect, and calculates the dissolved oxygen concentration by exciting the fluorescent dye with a blue LED and detecting the quenching time of the red fluorescence. It has the advantages of high measurement accuracy, strong anti-interference ability, and easy maintenance.

Model

DOS-1808

Measurement principle

Fluorescence principle

Measuring range

DO:0-20mg/L(0-20ppm);0-200%,Temp:0-50℃

Accuracy

±2~3%

Pressure range

≤0.3Mpa

Class of protection

IP68/NEMA6P

Main materials

ABS, O-ring: fluororubber, cable: PUR

Cable

5m

Sensor weight

0.4KG

Sensor size

32mm*170mm

Calibration

Calibration of saturated water

Storage temperature

-15 to 65℃



The newly released ppb-level dissolved oxygen meter DOG-2082Pro-L: It can detect extremely low concentrations of dissolved oxygen (ppb level, i.e., micrograms per liter), and is suitable for strict environmental monitoring (such as power plants, semiconductor industries, etc.).

Model DOS-2082Pro-L
Measuring range 0-20mg/L0-100ug/L;Temp0-50℃
Power supply 100V-240V AC 50/60Hz (alternative:24V DC)
Accuracy <±1.5%FS or 1µg/L(Take the larger value
Response time 90% of the change is achieved within 60 seconds at 25℃
Repeatability ±0.5%FS
Stability ±1.0%FS
Output Two ways 4-20 mA
Communication RS485
Water sample temperature 0-50℃
water discharge 5-15L/h
Temperature compensation 30K
Calibration Saturated oxygen calibration, zero point calibration, and known concentration calibration





The newly released multi-parameter water quality analyzer MPG-6099DPD: It can simultaneously monitor residual chlorine, turbidity, pH, ORP, conductivity, and temperature. Its most prominent feature is the use of colorimetric method to measure residual chlorine, which offers higher measurement accuracy. Secondly, the independent yet integrated design of each unit is also a major selling point, allowing each module to be maintained separately without the need for overall disassembly, thus reducing maintenance costs.

Model

MPG-6099DPD

Measuring Principle

Residual chlorineDPD

Turbidity: Infrared light scattering absorption method

Residual chlorine

Measuring range

Residual chlorine0-10mg/L;;

Turbidity0-2NTU

pH0-14pH

ORP-2000mV~+2000 mV;(alternative

Conductivity0-2000uS/cm

Temperature0-60℃

Accuracy

Residual chlorine0-5mg/L±5% or ±0.03mg/L6~10mg/L:±10%

Turbidity±2% or ±0.015NTU(Take the larger value)

pH±0. 1pH

ORP±20mV

Conductivity±1%FS

Temperature ±0.5

Display Screen

10-inch color LCD touch screen display

Dimension

500mm×716mm×250mm

Data Storage

The data can be stored for 3 years and supports export via USB flash drive

Communication Protocol

RS485 Modbus RTU

Interval of Measurement

Residual chlorine:The measurement interval can be set

pH/ORP/ conductivity/temperature/turbidity:Continuous measurement

Dosage of Reagent

Residual chlorine: 5000 sets of data

Operating Conditions

Sample flow rate: 250-1200mL/min, inlet pressure: 1bar (≤1.2bar), sample temperature: 5℃ - 40℃

Protection level/material

IP55ABS

Inlet and outlet pipes

nlet pipe Φ6, outlet pipe Φ10;Overflow pipe Φ10
