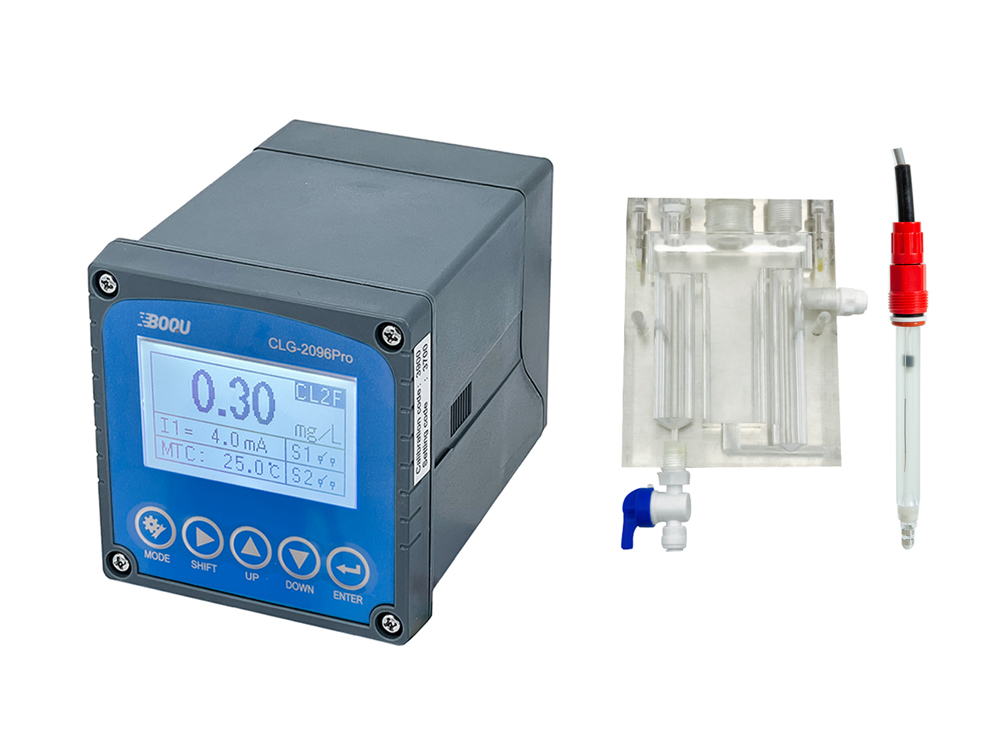

CLG-2096Pro Online Residual Chlorine Analyzer is a brand-new online analog analyzing instrument, it is independently developed and manufactured by Shanghai BOQU Instrument Co., Ltd. It can accurately measure and display free chlorine (hypochlorous acid and related salts), chlorine dioxide, ozone in chlorine containing solutions. This instrument communicates with devices such as PLC through RS485 (Modbus RTU protocol), which has the characteristics of rapid communication and accurate data. Complete functions, stable performance, easy operation, low power consumption, safety and reliability are the outstanding advantages of this instrument.
This instrument uses supporting analog residual chlorine electrode, which can be widely used in the continuous monitoring of residual chlorine in the solution in water plants, food processing, medical and health, aquaculture, sewage treatment and other fields.
Technical Features:
1) It can be matched with extremely quickly and precision residual chlorine analyzer.
2) It's suitable for harsh application and free-maintenance, save cost.
3) Provide RS485 & two ways of 4-20mA output
TECHNICAL PARAMETERS
|
Model: |
CLG-2096Pro |
| Product Name | Online Residual Chlorine Analyzer |
| Measure Factor | Free chlorine, chlorine dioxide, dissolved ozone |
| Shell | ABS plastic |
| Power Supply | 100VAC-240VAC, 50/60Hz (Optional 24VDC) |
| Power Consumption | 4W |
| Output | Two 4-20mA output tunnels，RS485 |
| Relay | Two-way (maximum load: 5A/250V AC or 5A/30V DC) |
| Size | 98.2mm*98.2mm*128.3mm |
| Weight | 0.9kg |
| Communication Protocol | Modbus RTU(RS485) |
| Range | 0~2 mg/L(ppm); -5~130.0℃ (Refer to the supporting sensor for the actual measurement range) |
| Accuracy | ±0.2%;±0.5℃ |
| Measurement Resolution | 0.01 |
| Temperature Compensation | NTC10k / Pt1000 |
| Temperature Compensation Range | 0℃ to 50℃ |
| Temperature Resolution | 0.1℃ |
| Velocity of Flow | 180-500mL/min |
| Protection | IP65 |
| Storage Environment | -40℃~70℃ 0%~95%RH (non-condensing) |
| Working Environment | -20℃~50℃ 0%~95%RH (non-condensing) |
|

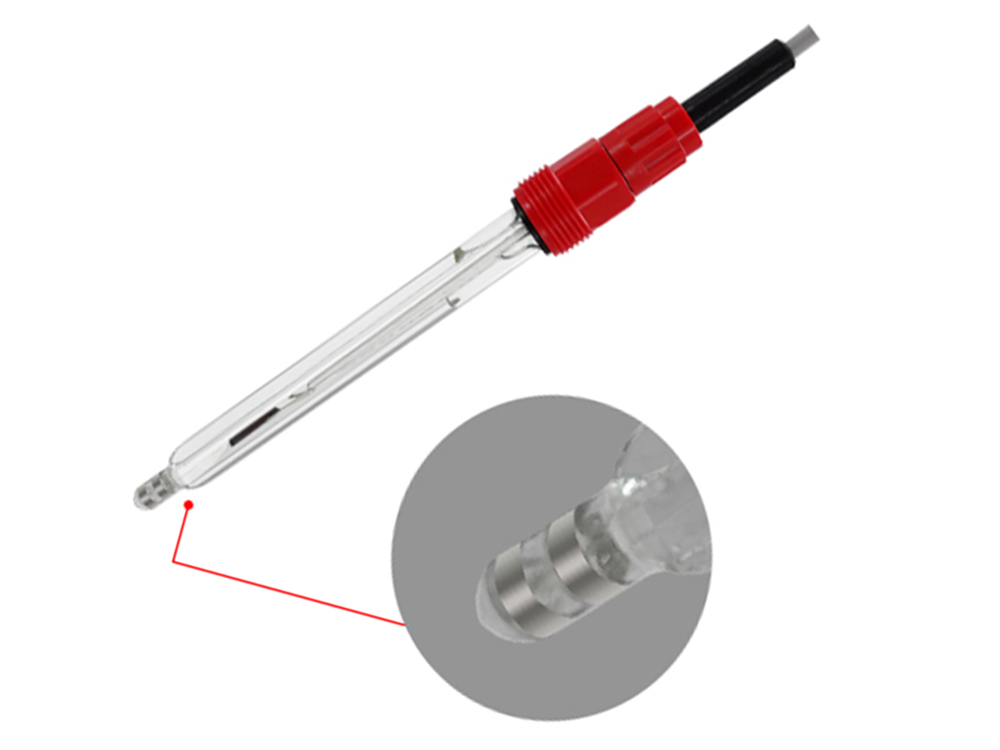

Model: |
CL-2096-01 |
|
Product: |
Residual chlorine sensor |
|
Range: |
0.00~20.00mg/L |
|
Resolution: |
0.01mg/L |
|
Working temperature: |
0~60℃ |
|
Sensor material: |
glass,platinum ring |
|
Connection: |
PG13.5 thread |
|
Cable: |
5meter,low noise cable. |
|
Application: |
drinking water,swimming pool etc |
