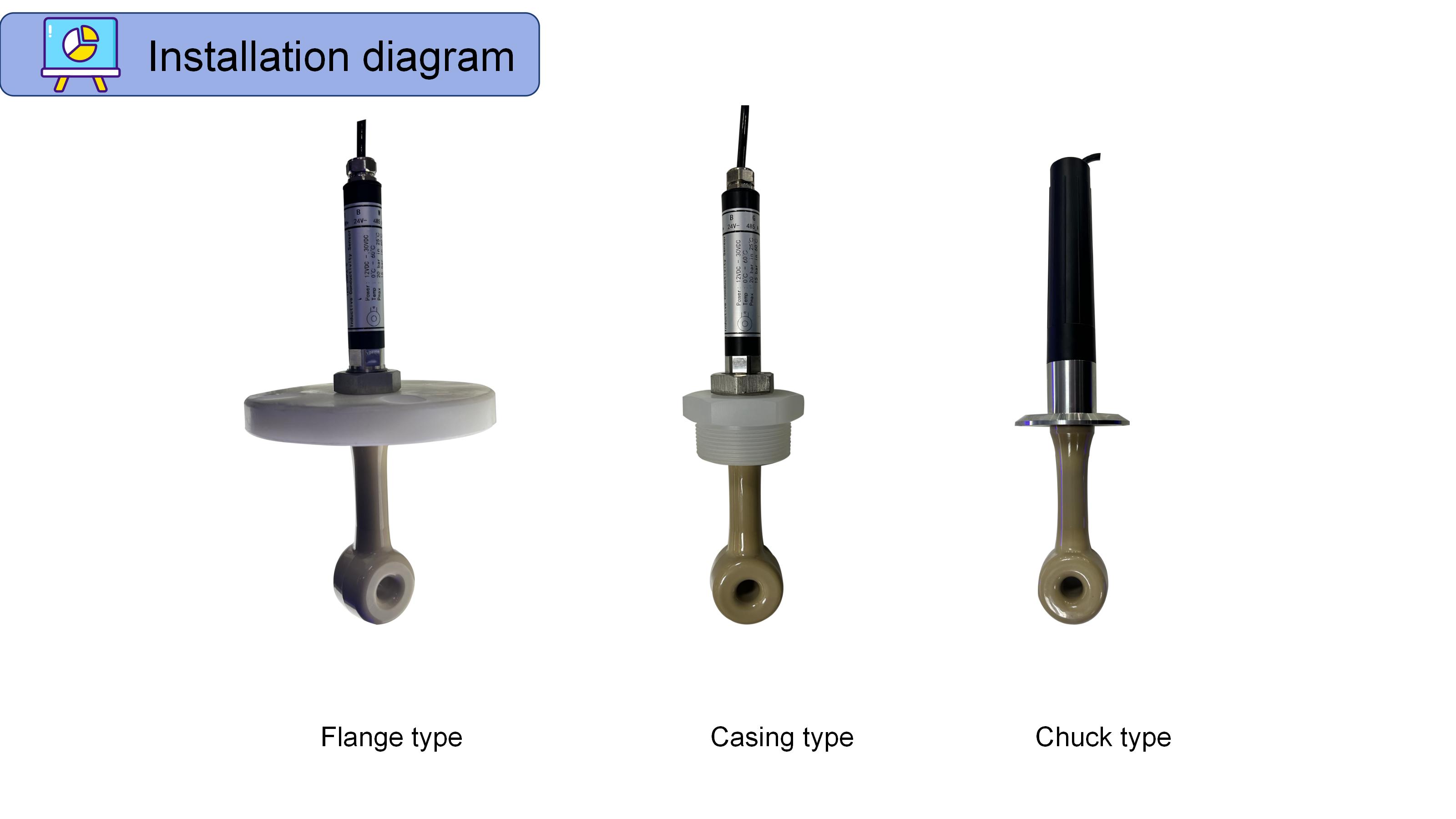

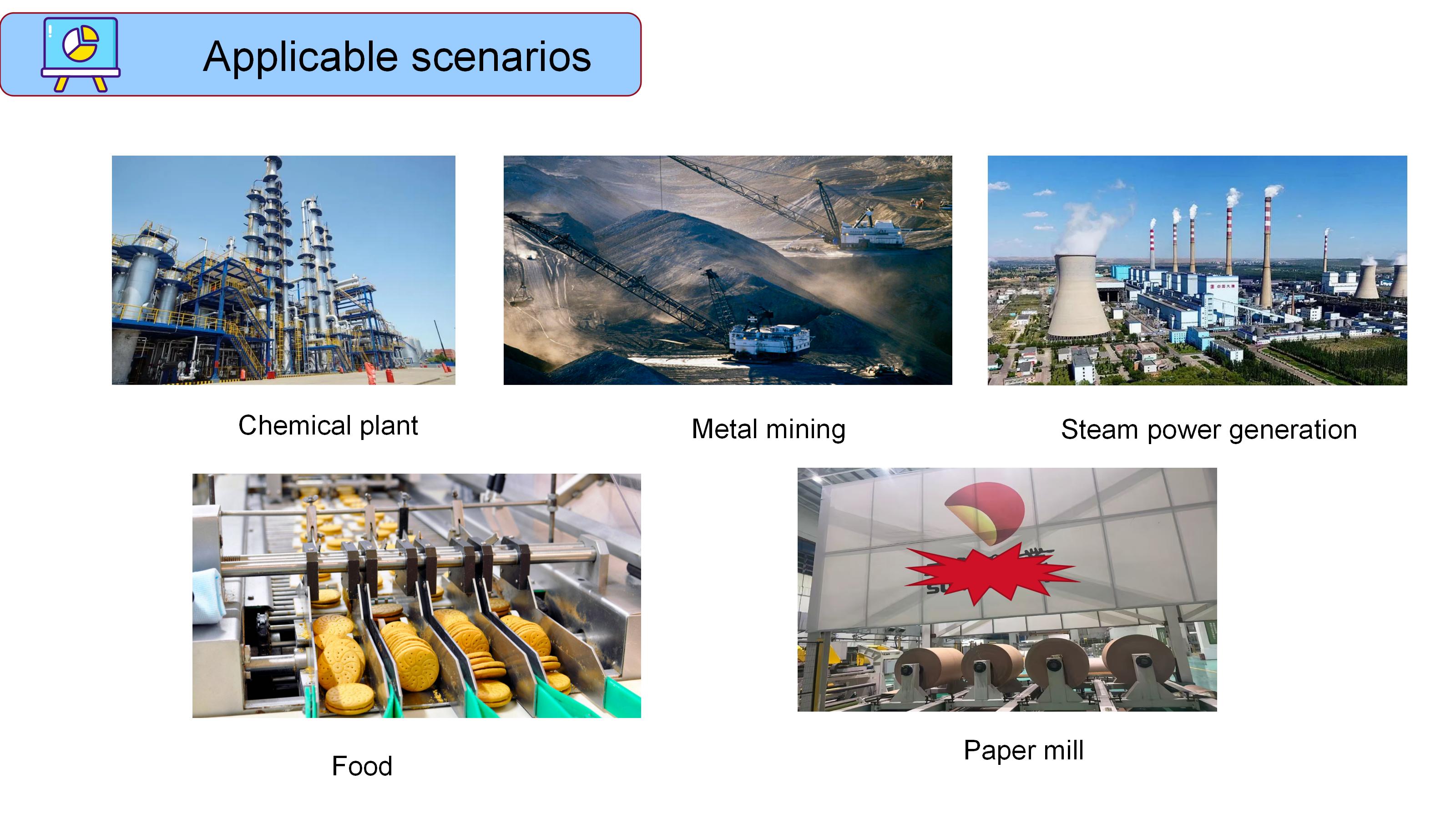

This product is a latest digital inductive conductivity sensor independently developed and produced by our company. The sensor is lightweight, easy to install, with high measurement accuracy, sensitive response, strong corrosion resistance and can work stably for a long time. It is equipped with a built-in temperature probe for real-time temperature compensation. It can be remotely set and calibrated, and is easy to operate. It can be used with SJG-2083CS meter, and can be installed in a submerged or pipeline manner to measure the pH value of water in real time. It has a wide range of applications.
| Product Name | Digital inductive conductivity sensor(Suitable for normal temperature) | Digital inductive conductivity sensor(Suitable for normal temperature) | Digital inductive conductivity sensor(Suitable for high temperature) | Digital inductive conductivity sensor(Suitable for high temperature) |
| Model | IEC-DNPA | IEC-DNFA | IECS-DNPA | IECS-DNFA |
| Shell Material | PEEK | PFA | PEEK | PFA |
| Working Temperature | -20℃ ~ 80℃ | -20℃ ~ 80℃ | -30℃ ~ 150℃ | -30℃ ~ 125℃ |
| Working Pressure | Max 21bar (2.1MPa) | Max 16bar (1.6MPa) | Max 21bar (2.1MPa) | Max 16bar (1.6MPa) |
| Waterproof Class | IP65 | IP65 | IP65 | IP65 |
| Measuring Range | 0.5mS/cm -2000mS/cm；The temperature range is the same as the process temperature | 0.5mS/cm -2000mS/cm；The temperature range is the same as the process temperature | 0.5mS/cm -2000mS/cm；The temperature range is the same as the process temperature | 0.5mS/cm -2000mS/cm；The temperature range is the same as the process temperature |
| Accuracy | ±2%or±1 mS/cm (Take the larger one)；±0.5℃ | ±2%or±1 mS/cm (Take the larger one)；±0.5℃ | ±2%or±1 mS/cm (Take the larger one)；±0.5℃ | ±2%or±1 mS/cm (Take the larger one)；±0.5℃ |
| Resolution | 0.01mS/cm；0.01℃ | 0.01mS/cm；0.01℃ | 0.01mS/cm；0.01℃ | 0.01mS/cm；0.01℃ |
| Power Supply | 12 V DC-30V DC; 0.02A; 0.6W | 12 V DC-30V DC; 0.02A; 0.6W | 12 V DC-30V DC; 0.02A; 0.6W | 12 V DC-30V DC; 0.02A; 0.6W |
| Communication | Modbus RTU | Modbus RTU | Modbus RTU | Modbus RTU |

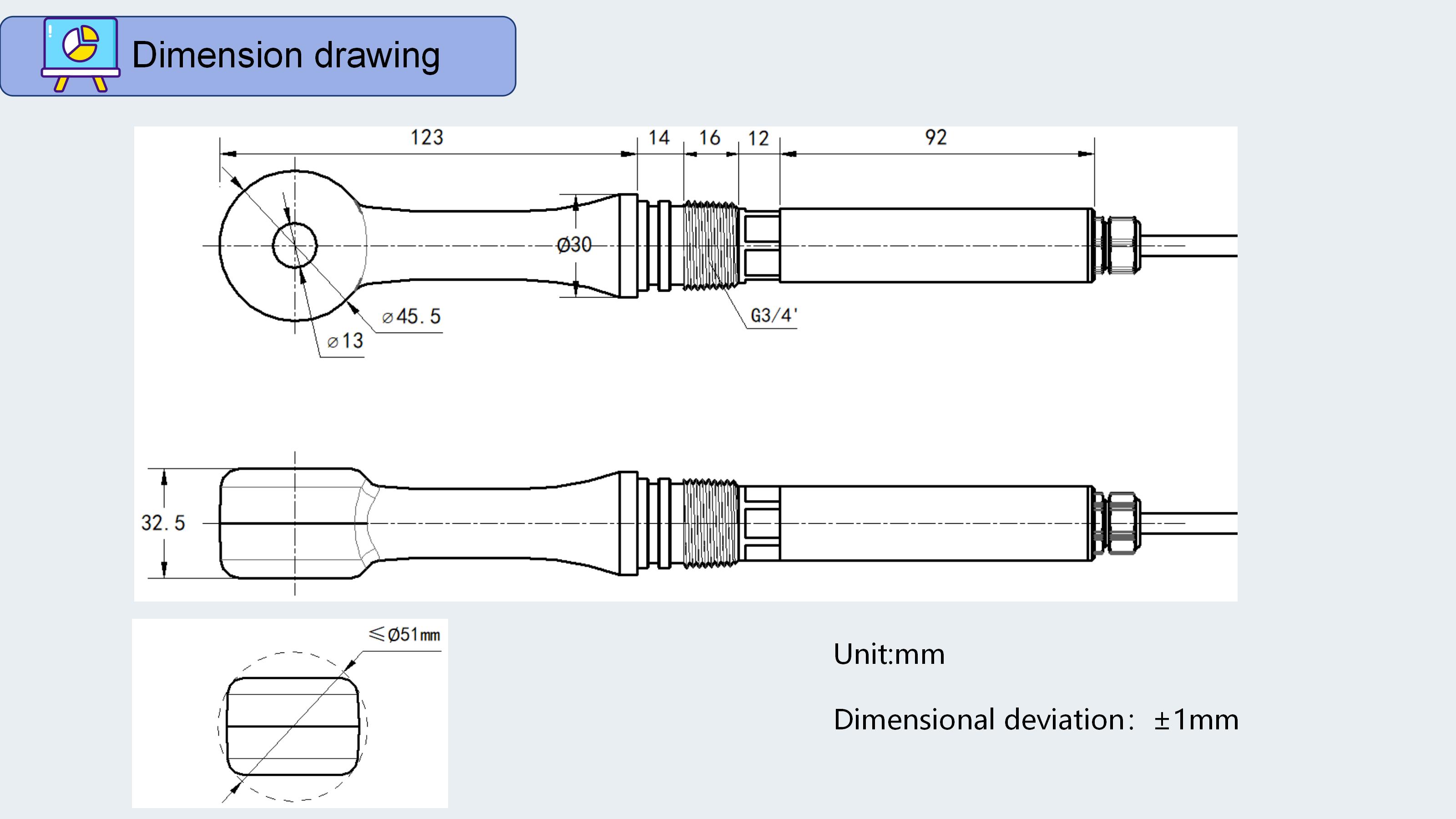

| dimension | 215*32.5mm | 215*32.5mm | 165*32.5mm | 165*32.5mm |
