Rainwater Pipe Network Application Case in Chongqing

Project Name: Smart City 5G Integrated Infrastructure Project in some District (Phase I) This phase of the project utilizes 5G network technology to integrate and upgrade six sub projects, including smart communities and smart environmental protection, based on the first phase of the smart high-tech EPC general contracting project. It aims to build a segmented industry foundation and innovative applications for social security, urban governance, government management, livelihood services, and industrial innovation, which focus on three industries: smart communities, smart transportation, and smart environmental protection, new deployment of 5G integrated applications and 5G terminals. Build an IOT platform, visualization platform, and other terminal application platforms in the area, promote 5G network coverage and 5G private network construction within the area, and support the construction of new smart cities.

In the smart community terminal construction of this project, three sets of urban water quality monitoring equipment are installed, including the urban surface rainwater pipeline network and the rainwater pipeline network at the entrance of Xugong Machinery Factory. BOQU online monitoring micro station equipment is installed respectively, which can monitor water quality remotely in real time.

Using products:

Integrated outdoor cabinet

Stainless steel，Includes lighting, lockable switch, Size 800*1000*1700mm

pH Sensor 0-14pH

Dissolved Oxygen Sensor 0-20mg/L

COD Sensor 0-1000mg/L;

Ammonia Nitrogen Sensor 0-1000mg/L;

Data acquisition and transmission unit: DTU

Control unit：15 inch touch screen

Water extraction unit: pipeline, valve, submersible pump or self-priming pump

Water tank sand settling tank and pipeline

One unit UPS

One unit oil-free air compressor

One unit cabinet air conditioner

One unit temperature and humidity sensor

One unit comprehensive lightning protection facilities.

Installation of pipes, wires, etc

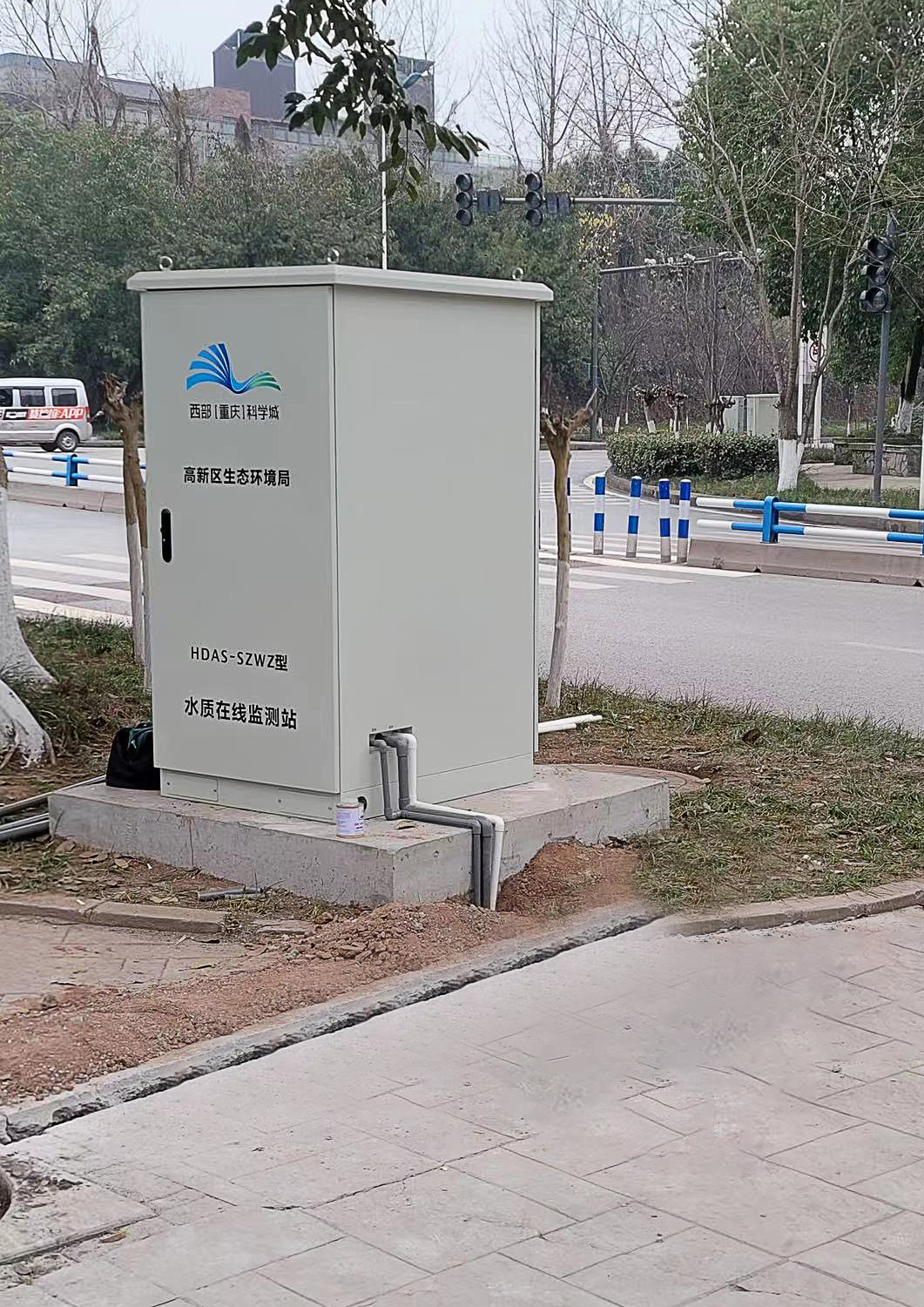

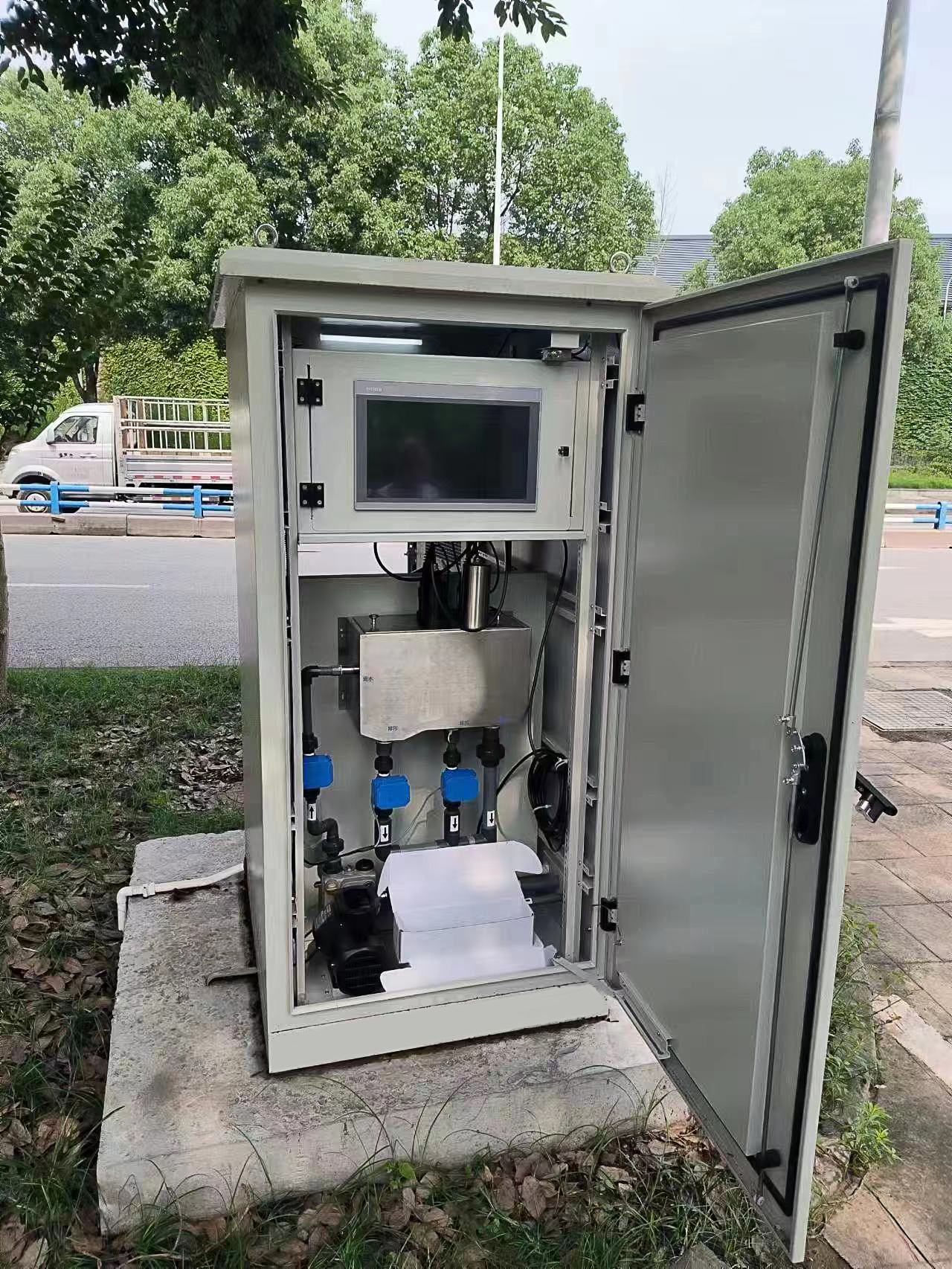

Installation pictures

The integrated monitoring of water quality micro station is achieved through electrode method, with a small footprint and convenient lifting. Added liquid level monitoring, and the system automatically shuts down the water pump protection equipment when the water volume is too low. The wireless transmission system can transmit real-time data to mobile phones or computer apps through mobile SIM cards and 5G signals, allowing for real-time remote observation of data changes without the need for reagents and minimal maintenance work.
